Phoebe supercomputer is placed in datacenter of Institute of Physics and infrastructure is managed with cooperation with Computing centre (CC) of FZU..

Compute nodes (20×, n[1-20])

  • Server/platform: Gigabyte H262-Z63 / Motherboard: MZ62-HD0-00 (vendor link)
  • CPU: 64 cores - 2x AMD EPYC 7543 (vendor link)
  • Memory: 512 GB - 16ks 32GB Samsung DDR4 3200 MHz ECC M393A4K40EB3-CWE
  • 100Gbit HPC interconnect adapter: single port Mellanox/Nvidia ConnectX 6 MT28908 Infiniband PCI-E card
  • Ethernet adapter: dual-port 10Gbit Broadcom BCM57416 PCI-E card
  • 1,92TB NVMe KINGSTON SEDC1500M1920G
  • pmax = 360W / node

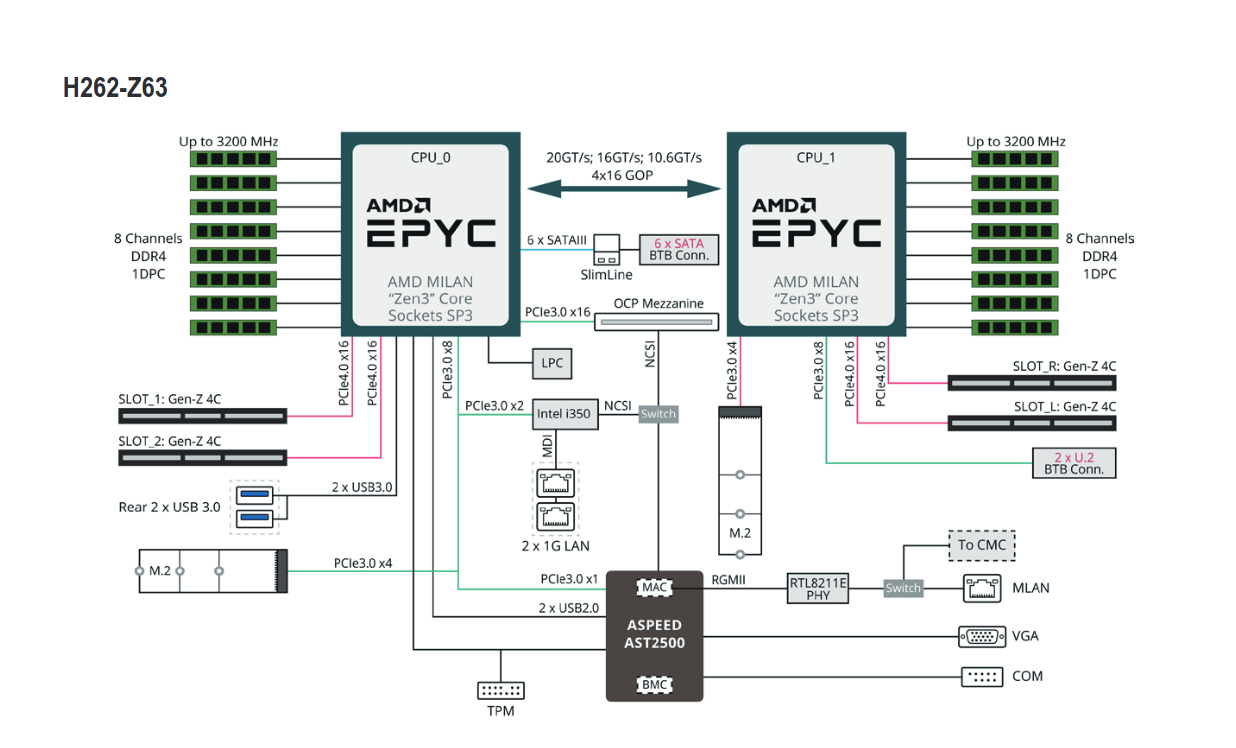

Block diagram of the Gigabyte H262-Z63 compute node with two AMD EPYC CPUs

Block diagram of a compute node (Gigabyte H262-Z63)

GPU-accelerated compute nodes (2×, gpu[1-2])

  • Server/platform: HPE ProLiant XL675d Gen10 Plus
  • CPU: 64 cores - 2x AMD EPYC 7543 (vendor link)
  • GPU: 8x NVIDIA A100-SXM with 80GB RAM connected with nvlink interconnect
  • Memory: 2TB - 32ks 64GB SK Hynix DDR4 2933 MHz ECC HMAA8GR7AJR4N-XN
  • 100Gbit HPC interconnect adapter: single port Mellanox/Nvidia ConnectX 6 MT28908 Infiniband PCI-E card
  • Ethernet adapter: dual-port 10Gbit Marvell FastLinQ 41000 Series
  • 3.8TB NVMe HPE MZXL53T8HBLS-000H3
  • pmax = 3.5 kW / node

Fast sequential CPU nodes (2×, hv[1-2], a.k.a. ssh:phoebe.fzu.cz)

  • Server/platform: Asus RS700A-E11-RS12U
  • CPU: 32 cores up to 4GHz - 2x AMD EPYC 73F3 16-Core CPU (vendor link)
  • Memory: 512GB - 16ks 32GB SK Hynix DDR4 3200 MT/s ECC HMA84GR7DJR4N-XN
  • pmax = 696 W
  • also the hypervisors for the small nodes below

Small nodes (3×, s[1-3])

  • Platform: KVM virtual machines on the hv nodes
  • CPU: 8 virtual cores of an AMD EPYC 73F3 (vendor link)
  • Memory: 64 GB
  • No InfiniBand; local disk about 1 TB
  • used by the small_int partition for light interactive work, and for software that runs better on a small machine than on a large SMP node, such as some legacy codes

High speed interconnect network

  • Infiniband MQM8700 Mellanox Quantum™ HDR Edge Switch (vendor_link)
  • servers connected with bandwidth of 100Gbit using splitter cables
  • offers 40x200Gbit or 80x100Gbit port configuration, redundant PSU
  • pmax = 189 W

Ethernet network equipment

  • Main switch: Alcatel-Lucent OmniSwitch OS6900-T48C6 (48× 10GBASE-T, 6× 100G QSFP28)
  • every server is connected to it at 10 Gbit/s
  • 100 Gbit link to a second OS6900-T48C6 in the Koios rack, which connects both clusters to the FZU computing centre network over two aggregated 10 Gbit links
  • out-of-band management (IPMI): Cisco CBS350-24T-4G, 1 Gbit
  • pmax = 132 W

Storage infrastructure

218 TB of hybrid storage built from solid state and rotational drives holds software, user and project data. See storage for how it is organised for users.

  • Disk array: Infortrend EonStor DS3016RUE with dual RAID controllers and two JB 3016R expansion shelves (16 drive bays each)
  • two storage servers st1 and st2: Supermicro H12SSW-NT, 1× AMD EPYC 7302 (16 cores), 128 GB RAM, ConnectX-6 HDR InfiniBand, 10 Gbit Ethernet
  • both servers are attached to the array over 12 Gbit SAS and run as a Pacemaker high-availability pair
  • BeeGFS parallel file system:
    • four storage targets of 55 TB each (XFS), two on each server
    • a metadata service on each server, on its own volume on the array
    • the management and monitoring services run on st2

Power management

  • five Raritan PX3 rack PDUs, managed over the network
  • supplied by six single-phase 230 V / 32 A feeds (7.36 kW each), split into an A side and a B side
  • servers with two power supplies take one from each side
